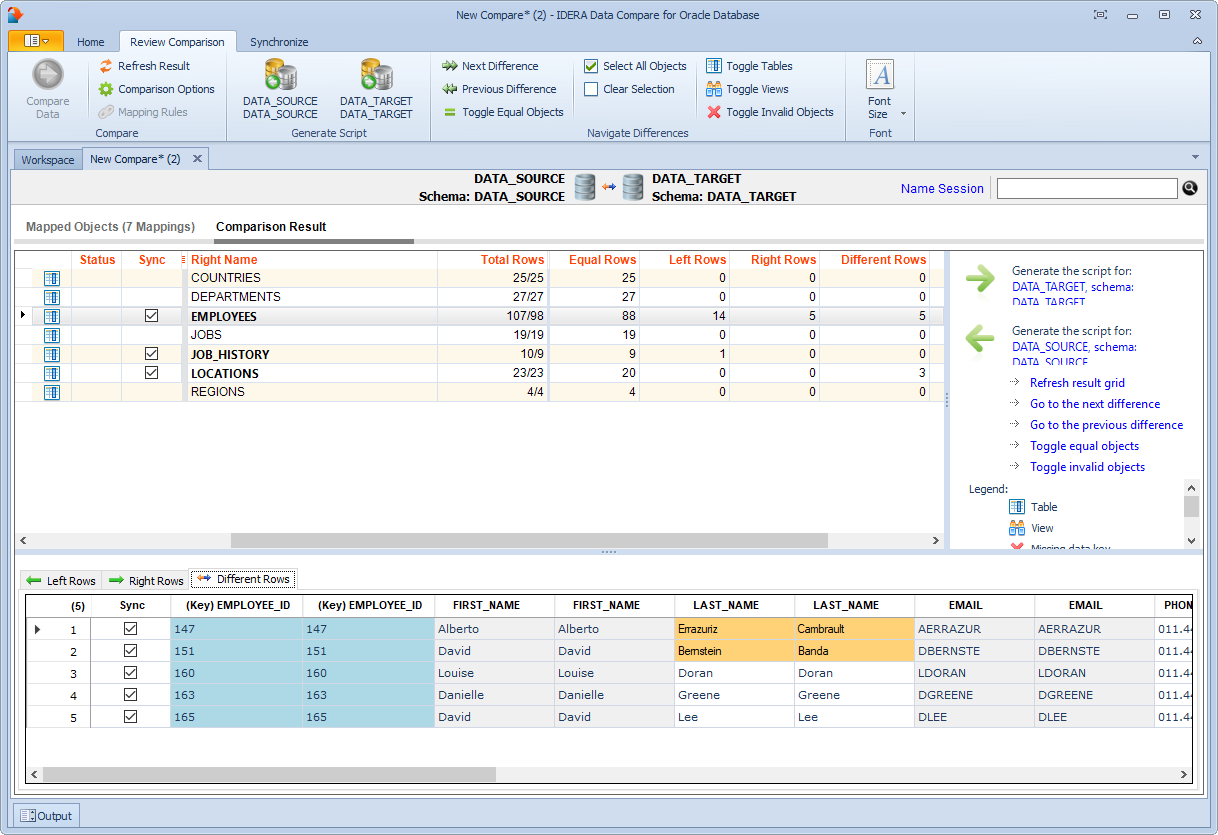

- Comparison summary. Displays the tables/views that have been compared and the row count as follows:
- Equal Rows. Rows that are equal.
- Left Rows. Rows that exist only on the left table/view.
- Right Rows. Rows that exist only on the right table/view.
- Different Rows. Rows that exist on both sides and are different.
Objects with data differences are displayed in bold and have a checkbox, that either includes or excludes them from the synchronization script. An object with no data key is considered "invalid." Invalid objects can't be compared.
- Comparison details. When you click on a pair of objects, depending on the data differences between them, one to three tabs will appear in the bottom section of the comparison window: Left Rows, Right Rows, and Different Rows. The grid that contains different rows, shows the paired columns from both objects side-by-side, so that you can easily see data differences. Right click on a row to view more the row data in more detail.
Notes on details grid:- Columns in the light-blue color are the columns that participate in the data key. The “key” label appears in the column header as well.
- Cells in orange color represent data values that are different.
- Rows that are equal, by default, are not shown in the row grid. To view equal rows, check the comparison option Report rows that are equal.
- Generate synchronization script. Those links will trigger the generation of the synchronization script for one direction or the other.
- Comparison action links. The action items provided in this section are also available on the Review Comparison tab of the ribbon. Clicking Refresh Results triggers a re-compare of the data.
- Legend. Provides a list of symbols that are used in the results grid.
