MongoDB registrations should be straightforward.

MongoDB: MongoSQL Query Reference, MongoDB SQL Mapping, MongoDB SHOW Commands & MongoShell

General Tab

Tab Coloring

To Identify Server Environments, whether it is a Production, Development, or Test, use the Tab Color feature :

  • Locate the Server in the Server Browser.
  • Right-click the Server - A Popup Menu appears.
  • Click the Item which displays Server Properties.
  • Based on the Server Type, you can edit the Tab Color option to identify your environments.
Using the Keyboard combination "CTRL + SHIFT + P", you may quickly access Server Properties and edit the Tab Color option.

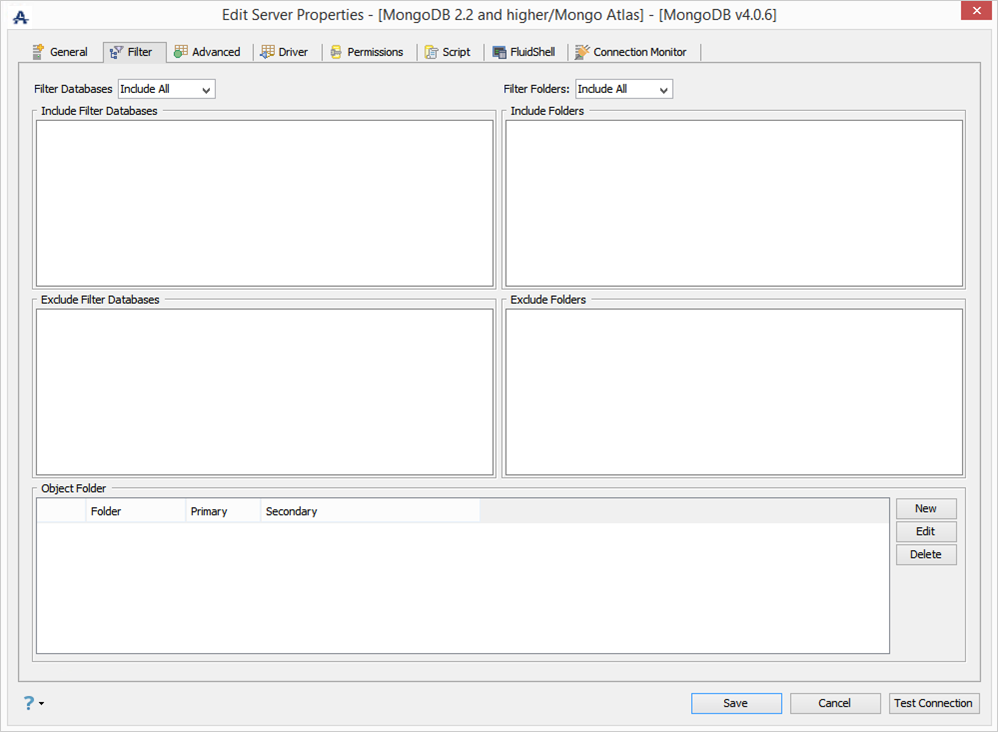

Using Filters Options in Registration (Filter Tab)

Edit the Server Properties, to use FILTER options for a Server in Aqua Data Studio:

  • Locate the Server in the Server Browser.
  • Right-click the Server - A Popup Menu appears.
  • Click the Item which displays Server Properties.
  • Go to the Filter Tab and make changes in the Options.
  • Filter Databases: Allows the user to specify the main schema browser filter for databases, on whether to include or exclude all.
  • Include Databases: A list of databases to include after the main filter is applied.
  • Exclude Databases: A list of databases to exclude after the main filter is applied.
  • Filter Objects: Allows the user to specify the main schema browser filter for object types, on whether to include or exclude all.
  • Include Objects: A list of objects to include after the main filter is applied.
  • Exclude Objects: A list of objects to exclude after the main filter is applied.

Features

  • You can Create, Edit or Delete Object folders. Default folders are Collections, Indexes, Roles, and Users.
  • Sometimes you would like to view only specific database collections. Use options to INCLUDE or EXCLUDE all databases and folders.
  • Enter the database or folder name in the specified text area and click Save. The current Connection will be terminated. Reconnect to see the changes.
  • Filters are case-sensitive.
  • Filter databases work on the list of databases inside the Databases folder.
  • Filter folders work on the list of folders inside a particular database. Example folders: Collections, Indexes, Roles, and Users.
  • Object folder filter works on an individual folder inside a particular database. The user can define filters for each of the Collections, Indexes, Roles, Users.
Using the drop-down at the top of the Filter Tab, quickly change your database or folder View.

Filter Examples:

If you want to show all collections in the Local database, excluding the ones with prefix SURVEY, then you will need to change your main filter to Include All and secondary filter to -SURVEY*. Note the "-" in front of the SURVEY pattern. Also, note that the filter pattern is case-sensitive.

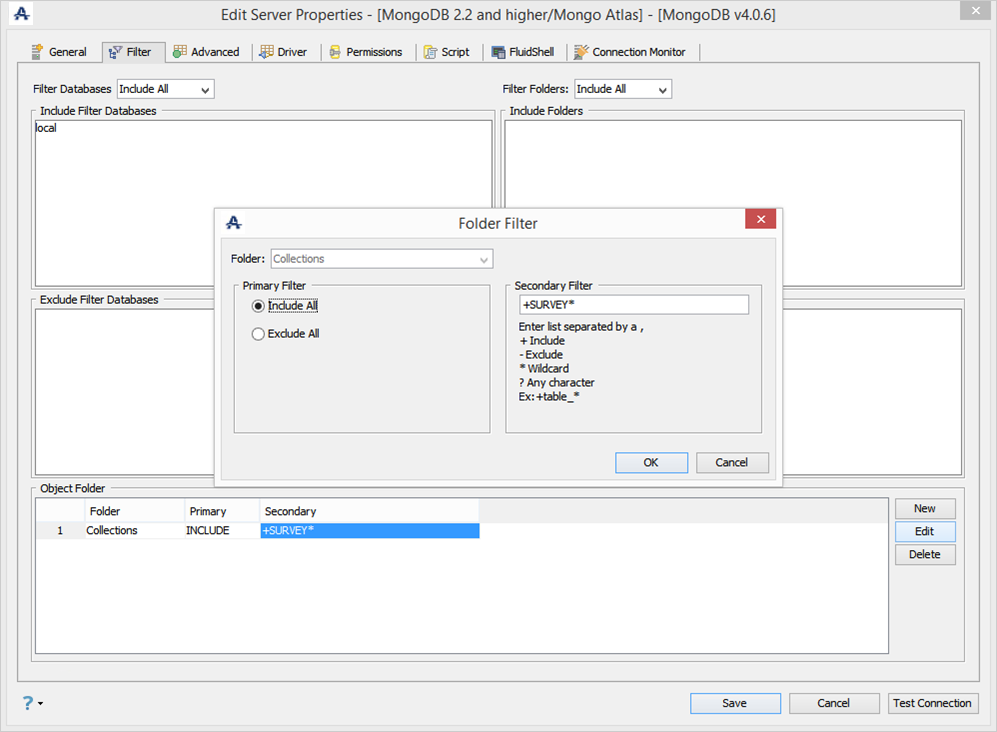

In the following image, we have set the filter to exclude all collections in the Local database. Collections that are prefixed with SURVEY are included. This is similar to the above example where all databases, except the local database, are excluded. Then, there is an Object Folder filter on the Collections folder, which excludes everything except those that start with SURVEY.

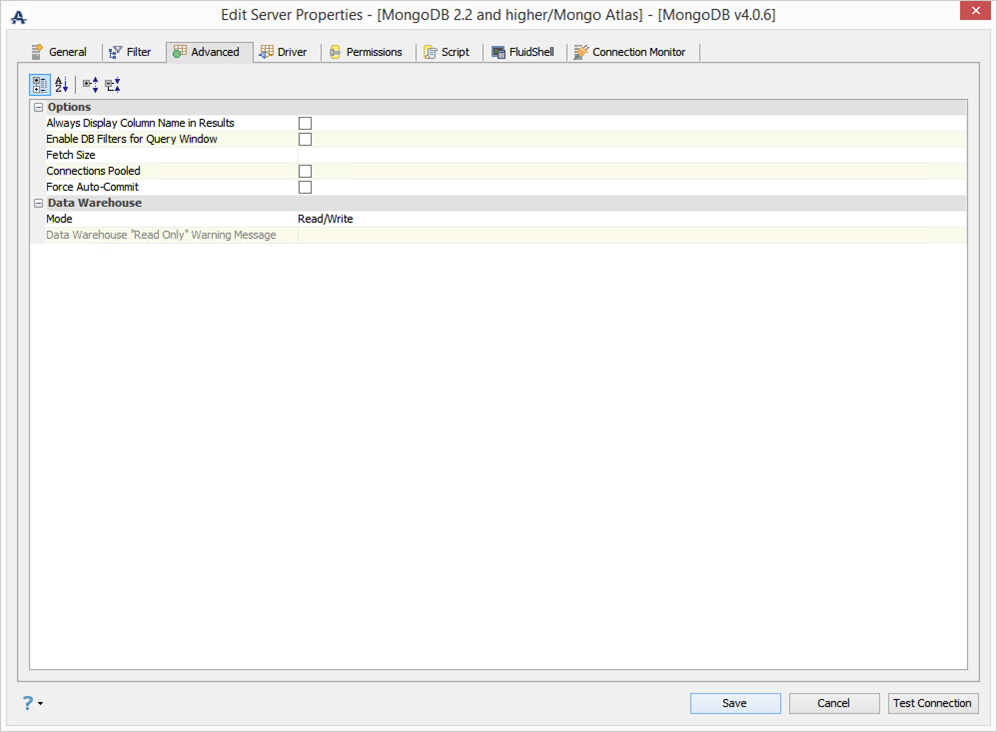

Using Advanced Properties (Advanced Tab)

Edit the Server Properties to use Advanced Properties in Aqua Data Studio:

  • Locate the Server in the Server Browser.
  • Right-click the Server - A Popup Menu appears.
  • Click the Item which displays Server Properties.
  • Go to the Advanced Tab and make changes in the Options.

With options in Advanced properties of a Server, you can:

  • Enable Database Filters in Query Analyzer.
  • Change Read Only / Read- Write Mode.
  • Always Display Column Name in Results: Allows to show/hide column names in query results.
  • Enable DB Filters for Query Window: Enables/Disables db filters for query windows using this connection.
  • Fetch Size: Determines the Fetch Size (number of rows physically retrieved from the database at one time by the JDBC driver).
  • Connections Pooled: Enables connection pooling.
  • Force Auto-Commit: When this option is selected, it sets auto-commit to TRUE for any Query Window to this server and disables the icons on the toolbar.
  • Data Warehouse Mode: Read Only or Read/Write.

Using Driver Properties (Driver Tab)

  • Locate the Server in the Server Browser.
  • Right-click the Server - A Popup Menu appears.
  • Click the Item which displays Server Properties.
  • Go to the Driver Tab and make changes in the Options.

  With options in Driver properties of a Server, you can edit/view the:

  • Driver: This displays the JDBC driver used for this connection.
  • Driver Parameters: This option is to allow a user to specify extra JDBC parameters that a user might want to use in establishing a connection.
  • Connection URL: This displays the connection URL for this server connection.
  • Driver Parameters Quick filter: This option is to allow a user to search JDBC parameters that a user might want to use in establishing a connection.

Server Permissions (Permissions Tab)

  Edit the Permissions in Server Properties in Aqua Data Studio:

  • Locate the Server in the Server Browser.
  • Right-click the Server - A Popup Menu appears.
  • Click the Item which displays Server Properties.
  • Go to the Permissions Tab and make changes in the Options.

  With options in the Permissions Tab of a Server, you can:

  • Control Statement execution and Properties of the Query Analyzer, Table Data Editor, and Visual Editing.
  • Grant / Revoke Permissions easily for executing DDL and DML Statements in the Query Analyzer.
  • Change the behavior of the Table Data Editor for manipulating rows in Collections.
  • Grant / Revoke Alters, Creates, Drops and View Properties of Visual Editing Tools.

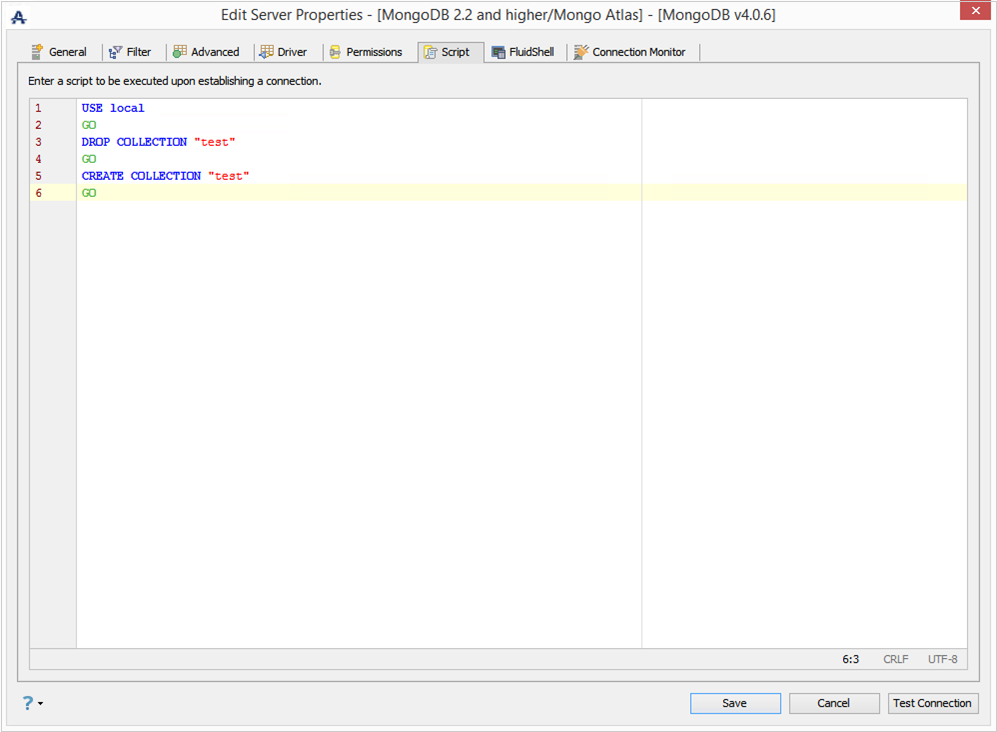

Server Scripts (Scripts Tab)

  Edit Scripts in Server Properties in Aqua Data Studio:

  • Locate the Server in the Server Browser.
  • Right-click the Server - A Popup Menu appears.
  • Click the Item which displays Server Properties.
  • Go to the Scripts Tab and make changes in the Options.

  With scripts in the Scripts Tab of a Server, you can:

  • Enter an SQL Script that is executed each time a new connection is established.
  • This allows the user to SET connection settings for a server connection. (e.g. SET ROLE, ALTER SESSION SET XXX)

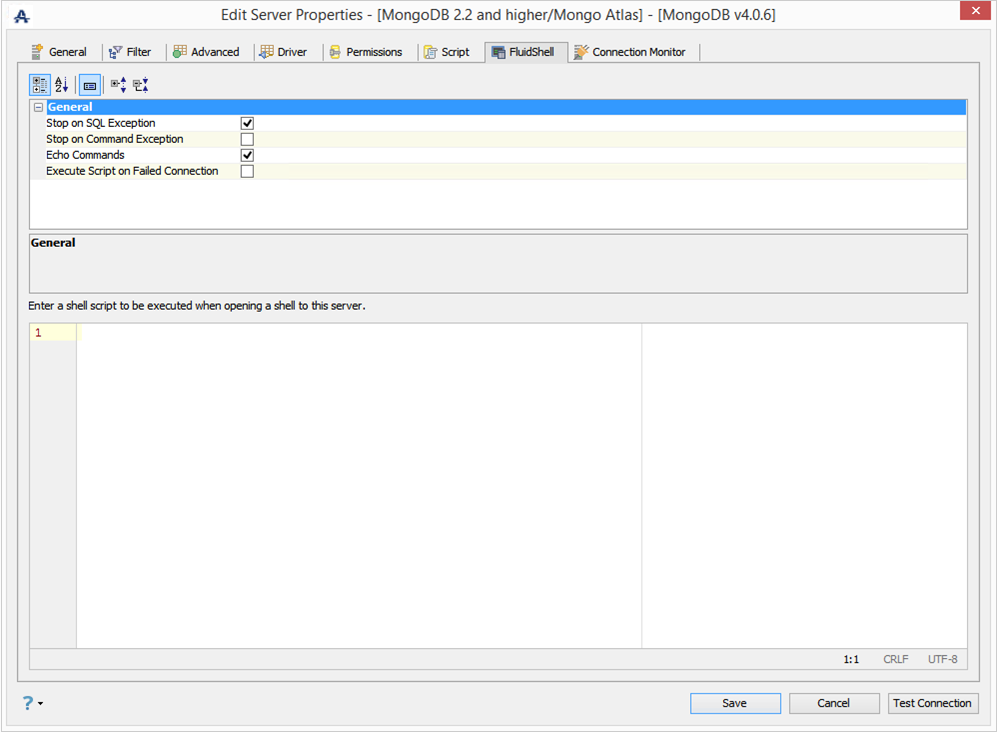

Shell Scripts (FluidShell Tab)

Edit Shell Scripts in Server Properties in Aqua Data Studio:

  • Locate the Server in the Server Browser.
  • Right-click the Server - A Popup Menu appears.
  • Click the Item which displays Server Properties.
  • Go to the FluidShell Tab and make changes in the Options.

  With scripts in the FluidShell Tab of a Server, you can:

  • Enter a FluidShell Script that is executed each time a new FluidShell connection is established.
  • This allows the user to cd (change directory) for a server connection. (e.g. cd /scripts)

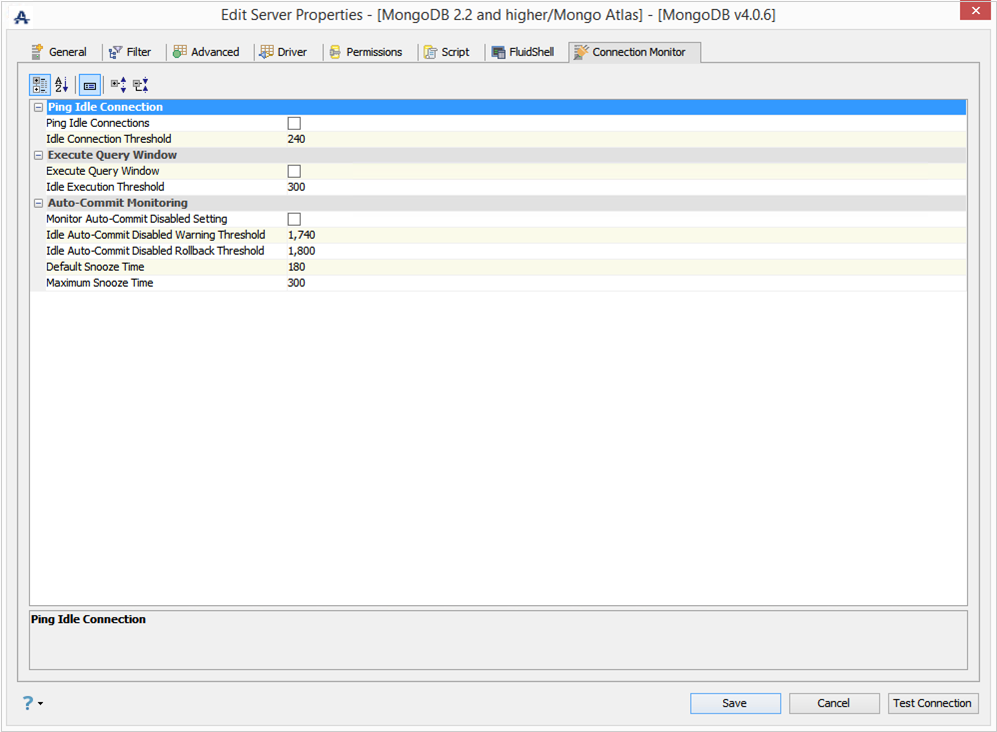

Server Connections (Connection Monitor Tab)

Enable the connection monitor to start an application thread that monitors the status of the connection associated with the Query Window.
With the connection monitor, you can:

  • Set a ping operation that allows activity on the connection to prevent the connection from being terminated.
  • Set an execute operation that executes the Query Window on a periodic basis.
  • Set an auto-commit operation that checks how long the auto-commit has been disabled and whether the idle threshold has been exceeded. A warning threshold can also be configured so users can turn on auto-commit before it happens.

For more information, see Connection Monitor.
