WhereScape maintains and distributes a customized version of Azkaban for the scheduling and orchestration of data warehouse workloads with RED. WhereScape’s customized version includes support for PostgreSQL as opposed to the MySQL version available publicly and is setup in Multi Executor Server mode for parallel execution and high availability. This version of Azkaban is currently only available and distributed with WhereScape RED. WhereScape’s version of Azkaban is based on the Azkaban 3.x release branch. For the most part, the publicly available Azkaban documentation still applies to WhereScape’s version of Azkaban excluding the MySQL portions and any features beyond the 3.x version.

Note
iconfalse
titleNote

For more information, visit the Azkaban official documentation.

Azkaban Architecture

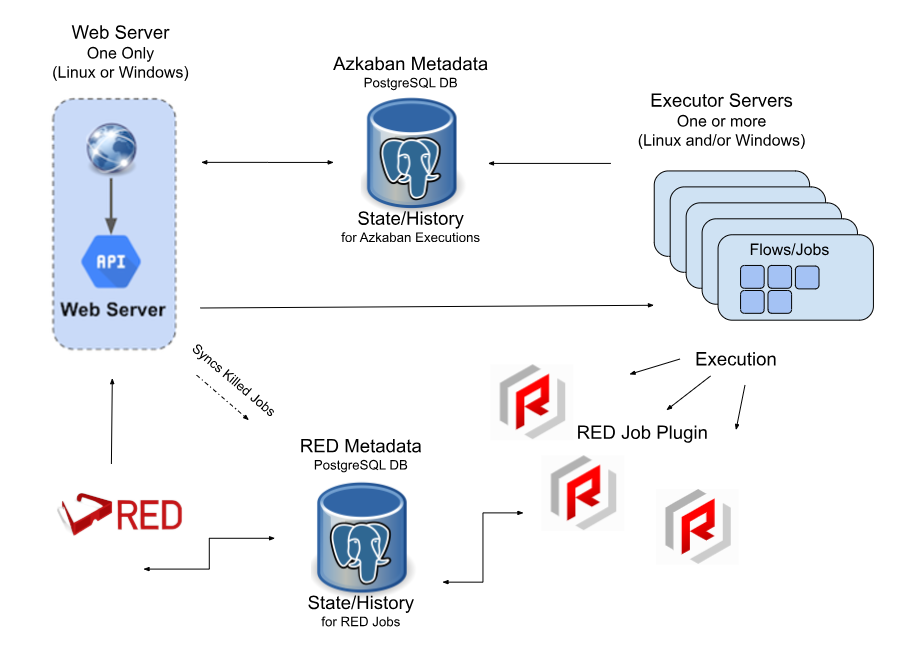

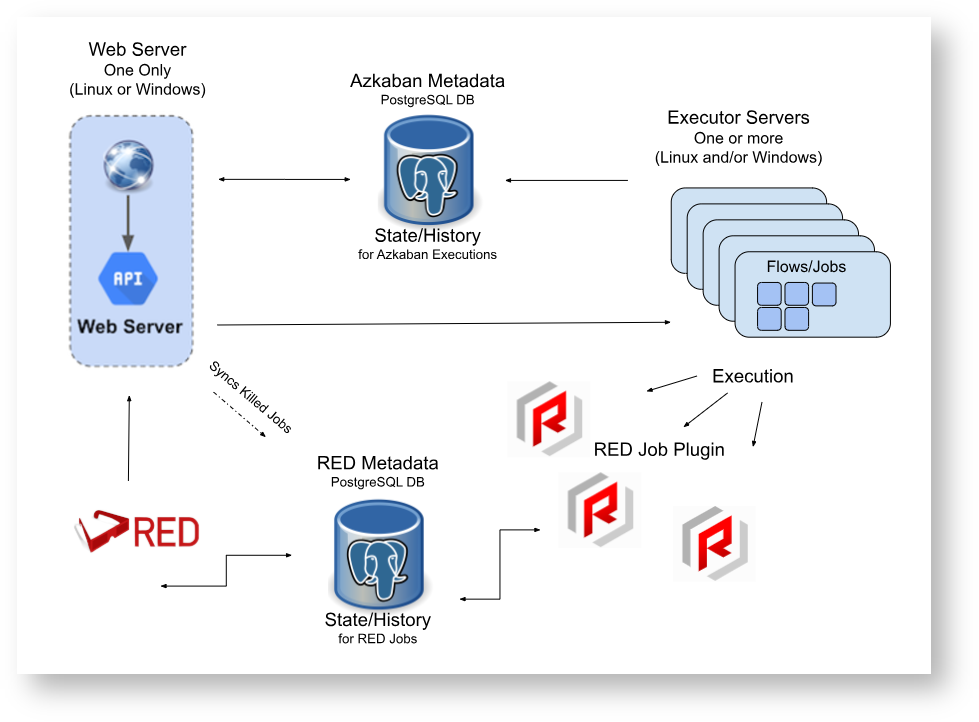

The diagram below shows the WhereScape RED Azkaban Architecture, for more details on the components see the Scheduler section of this User Guide.

Azkaban Architecture DiagramImage Added

The WhereScape Azkaban Scheduler is made up of a single Azkaban Web Server and one or more Azkaban Executor Servers. Both of these components can run on either Windows or Linux depending on your preference for environments and the job types.

...
