To Install the IDERA Dashboard on any machine with the repository hosted on a High Availability SQL Server Instance, make sure you have set up a Windows Failover Cluster and a SQL Server Instance .Configure the for High Availability on your machine. Find more information | Newtab2 |
|---|
| alias | here |
|---|
| url | https://blogs.technet.microsoft.com/canitpro/2013/08/19/step-by-step-creating-a-sql-server-2012-alwayson-availability-group/ |
|---|
|
.
Installation Steps for IDERA Dashboard on a High Availability Group
- Install the IDERA Dashboard on any server of your machine following the Installation stepsSteps.
- Go to SQL Server Management Studio and connect to the SQL Server Instance where you installed the IDERA Dashboard.
- Under Databases, right-click on the IderaDashboardRepository and click select properties, on . On the wizard, select Options and run a Full Recovery model.
- Right click on IderaDashboardRepository, select Tasks, and run a Full Back up.
- To configure your Availability groupGroup, right-click on Availability groupsGroups and select New Availability Group Wizard...
Image Modified

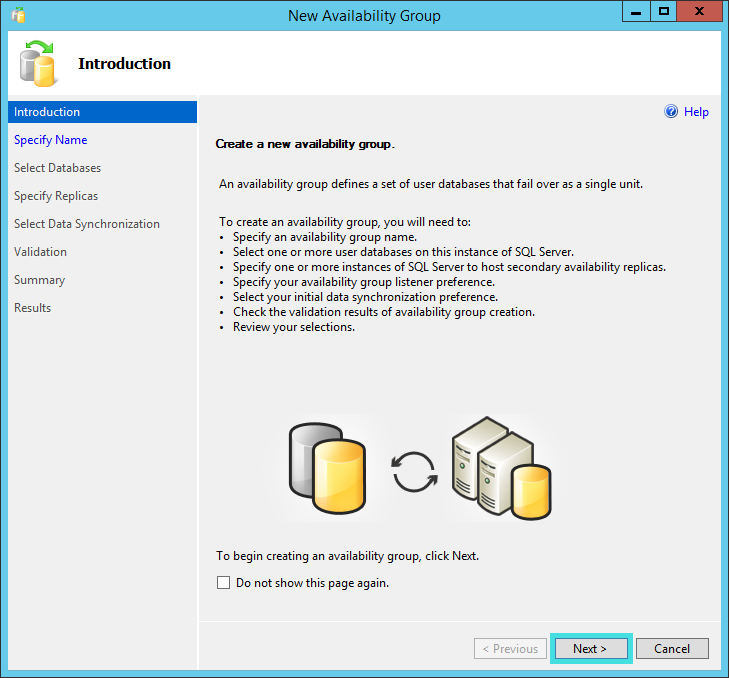

- On the Introduction wizard click Next.

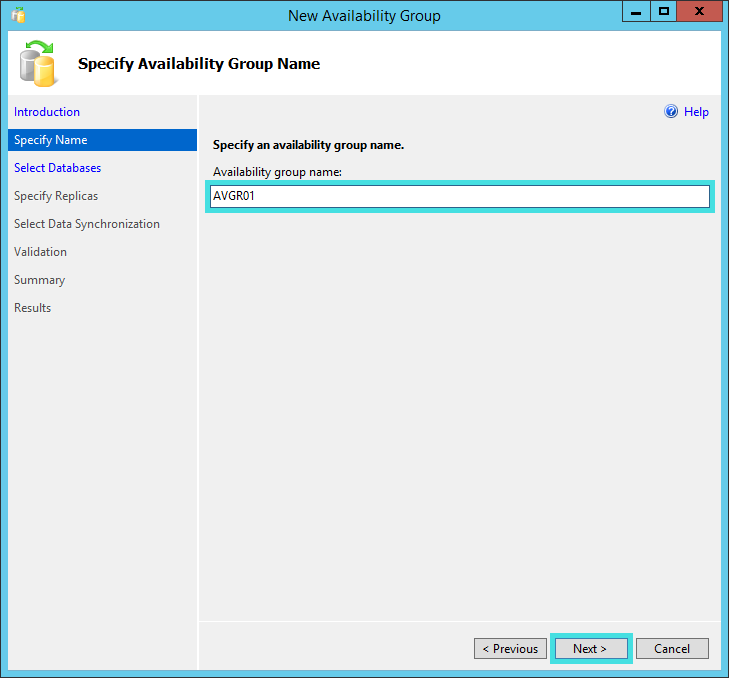

- Provide a name to the availability group and click. Click Next.

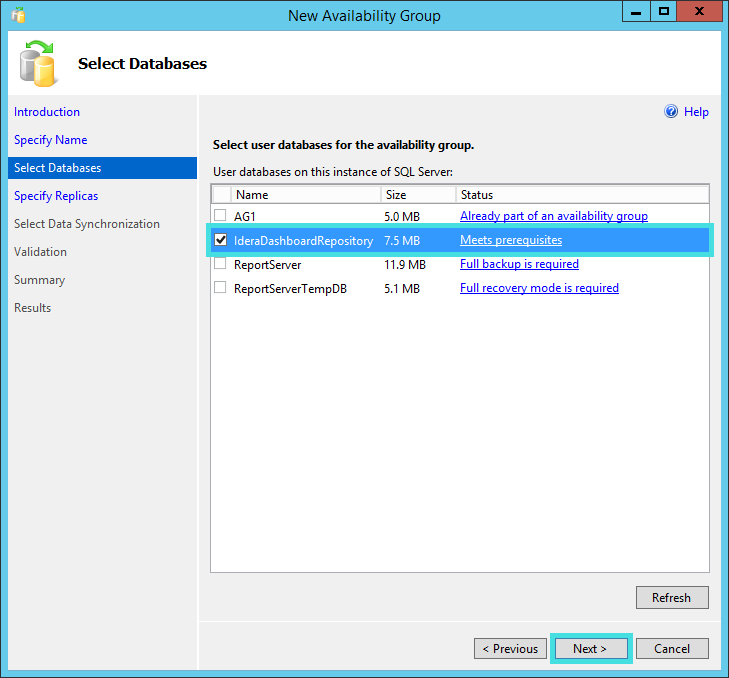

- On the Select Databases page, a list of available user databases displays, check the box of the IderaDashboardRepository database.
- The Specify Replicas wizard page, displays as default the server where you are configuring your the availability groupHigh Availability Group, click Add Replica..., and browse the servers to be included on the Availability Group.
- Check the options, boxes of Automatic Failover (Up to 2) and , Synchronous Commit (up to 3) on all your replicas, and select No on the Readable Secondary option, on all your replicas.
- On the Endpoints tab, make sure that the port number value is 5022.

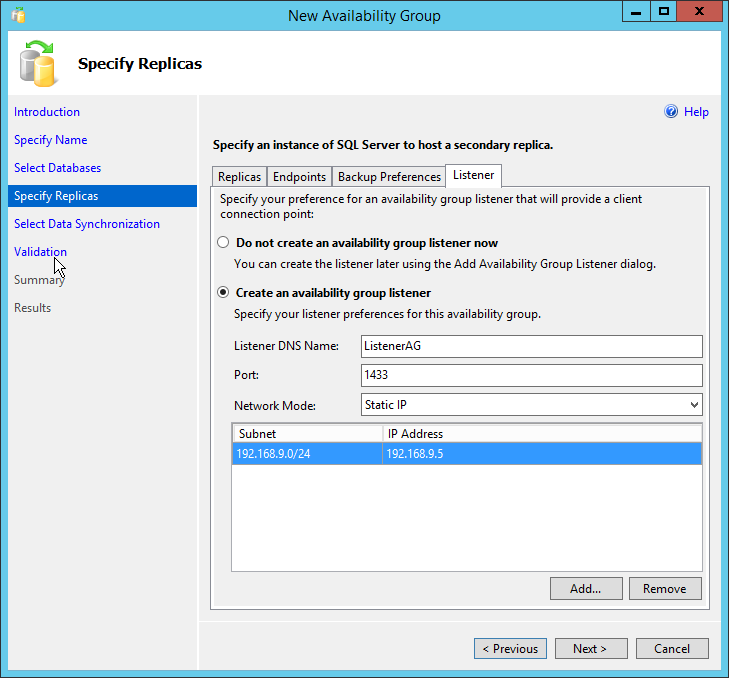

- On the Listener tab, provide a Listener DNS Name with the port number 1433and an IP number, and click Add....On the wizard provide an IP address. In , in the Add IP Address dialog box, enter your preferred virtual IP address in the IPv4 Address field. Click OK. Click Next.

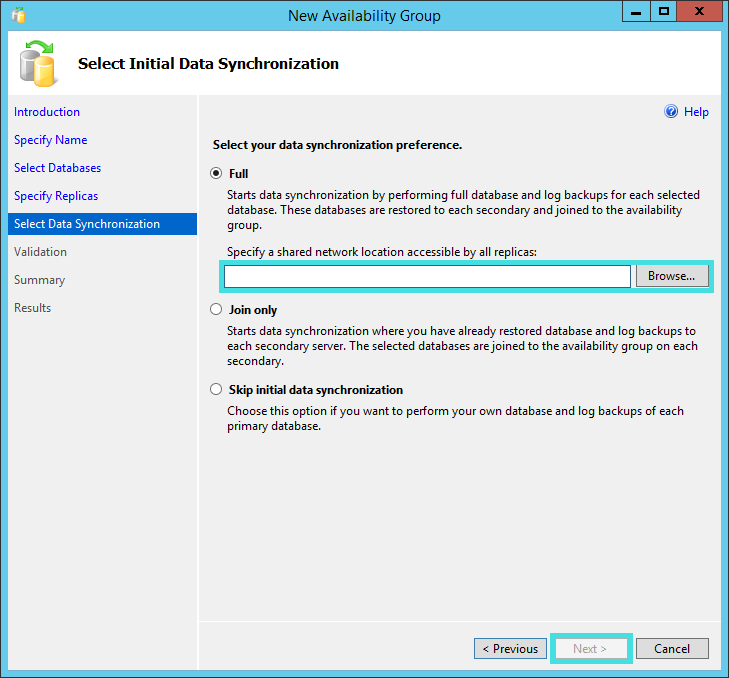

- On the Select Database Synchronization wizard, select the Full option, and provide a shared folder location accessible by all replicas.Click Next.

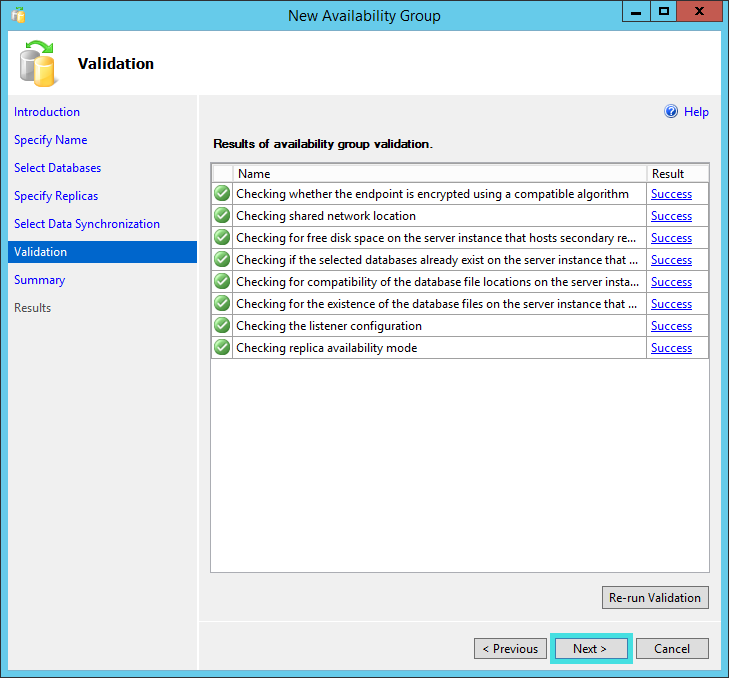

- On the Validation wizard, verify Verify that all results return Success and click . Click Next.

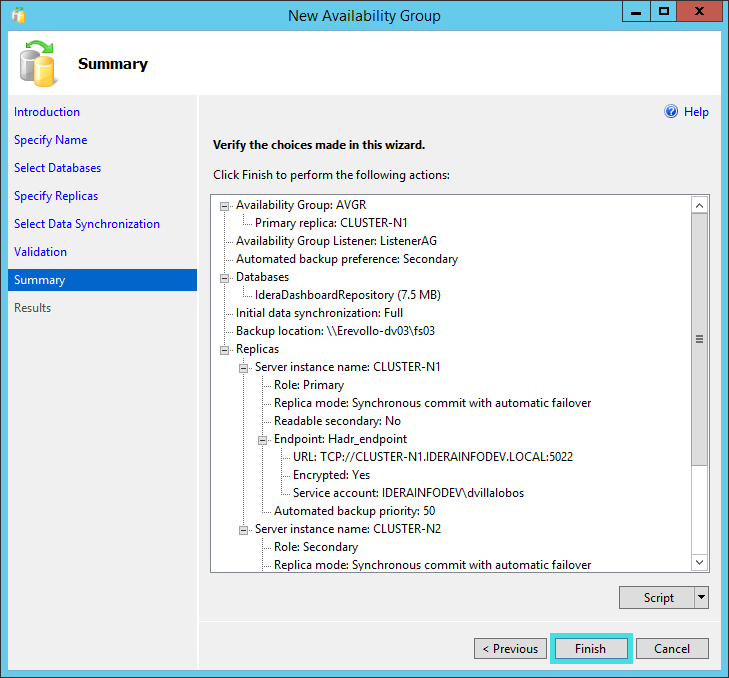

- The Summary page , displays all the actions to be performed, click. Click Finish when ready.

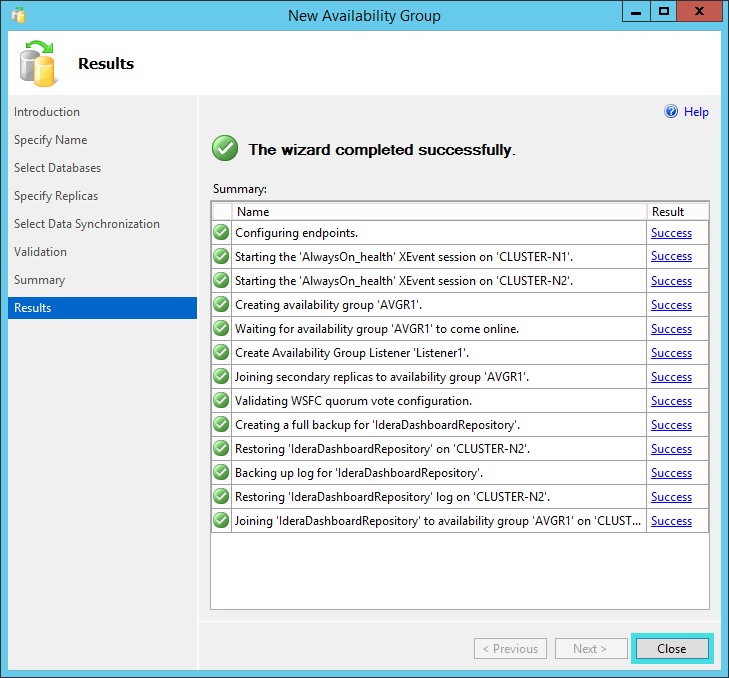

- Verify that all results return Success. Click Close.

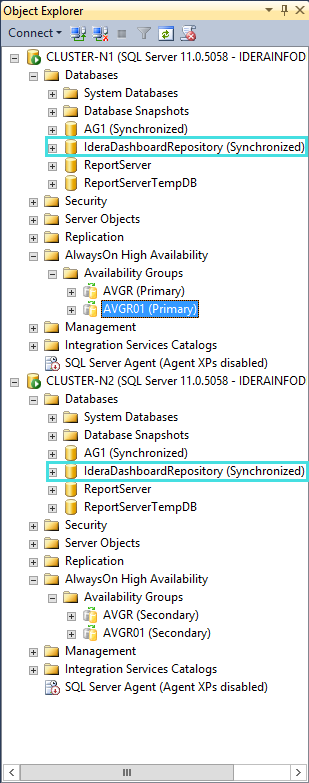

- On the SQL Server Management Studio, you can verify that the IderaDashboardRepository database is Synchronized on the configured Replicas.
