WhereScape Enablement Pack for Snowflake - RED 10

This is a guide to installing the WhereScape Enablement Pack for Snowflake for WhereScape RED10

Prerequisites For PostgreSQL Metadata

Before you begin the following prerequisites must be met:

  • Create Database and ODBC DSN:
    • Supported* version of PostgreSQL (PostgreSQL 12 or higher)
      • A database to house the RED Metadata Repository.
      • A database for the Range Table DB (Optional)
      • A database to house scheduler (Optional)
  • Software Installations
    • WhereScape RED10 with valid license key entered and EULA accepted
    • WhereScape Enablement Pack for target database version RED10
  • Windows Powershell (64-bit) version 4 or higher
    • To check the Windows Powershell Version:
      • Run the below command in Windows Powershell
        Get-Host|Select-Object Version
      • Run the below command in the Command Prompt
        powershell $psversiontable
  • Run the following command using PowerShell
      • The security protocol TLS 1.0 and 1.1 used by PowerShell to communicate with the PowerShell gallery has been deprecated and TLS 1.2 has been made mandatory
        [Net.ServicePointManager]::SecurityProtocol = [Net.ServicePointManager]::SecurityProtocol -bor [Net.SecurityProtocolType]::Tls12
Register-PSRepository -Default -Verbose
Set-PSRepository -Name "PSGallery" -InstallationPolicy Trusted
      • Progress bar placeholder info line
        Install-Module -Name PoshProgressBar -SkipPublisherCheck -Force

* RED supports the following versions for the metadata repository: PostgreSQL 12 or higher

Prerequisites for Target Database

Before you begin the following prerequisites must be met:

  • Access to a Teradata (Target Environment), with the following connectivity information:
    1. Server Name
    2. Database Name
    3. User Name
    4. Password
    5. At least one database available to use as a RED Data Warehouse Target with permissions CREATE, EXECUTE, DROP, SELECT
      PROCEDURE.
  • Create Database and ODBC DSN Teradata ODBC driver (64-bit)
    1. Add ODBC DSN for Teradata Target Database
    2. The 'Return Output Parameters As ResultSet' option is to be checked in the driver options setting.
  • Software installation
    • Install the necessary Teradata Tools and Utilities (TTU) (TBuild CLI Tool) as per Teradata's documentation.
  • Python 3.8 or higher
    • Select "Add Python 3.8 to PATH" from installation Window
    • Pip Manager Install with command: python -m pip install --upgrade pip

  Installation Through Setup Wizard

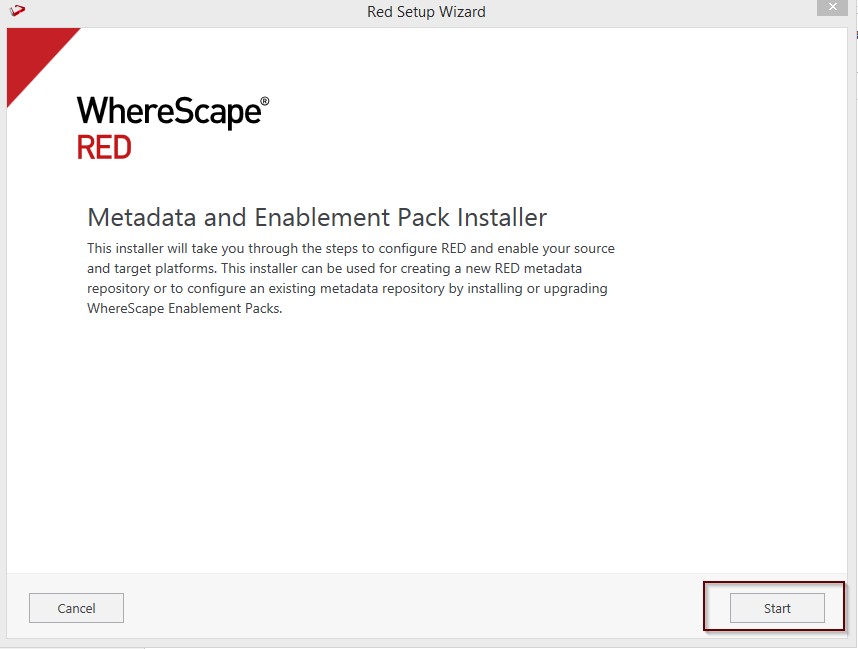

Run Setup Wizard as administrator

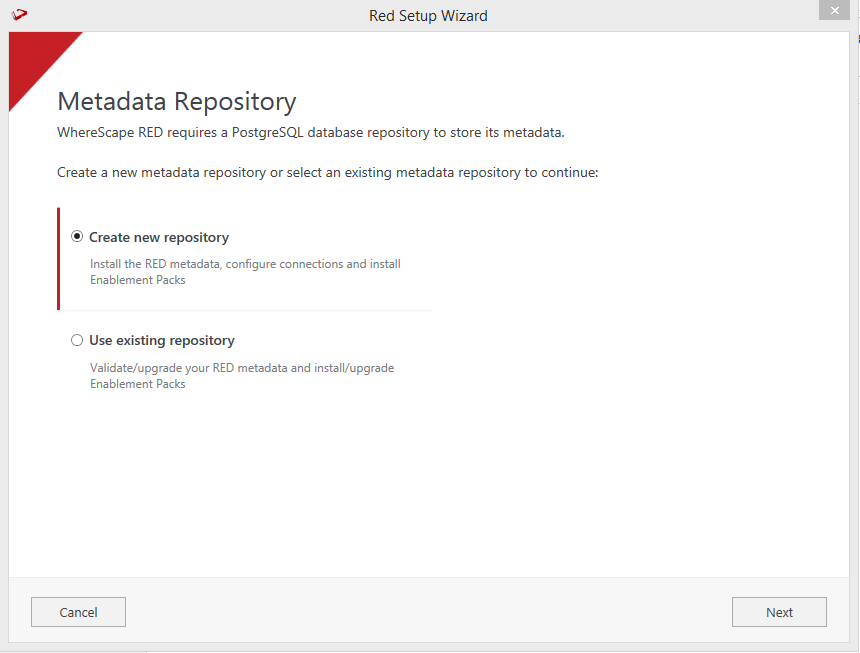

Create a new repository or upgrade an existing repository.

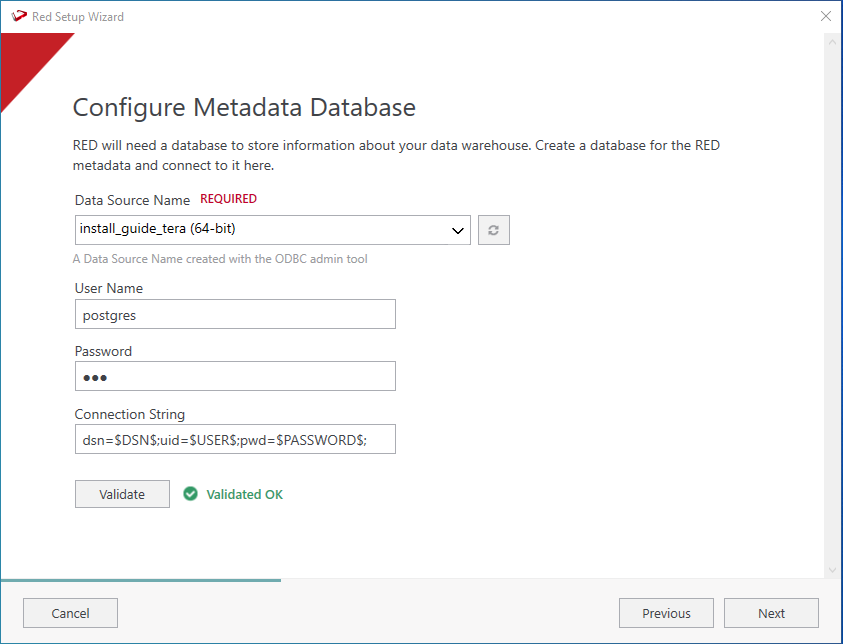

Select the created ODBC DSN, input login details, and then select Validate. Click Next.

Select the directory that contains the unzipped Enablement Pack for installation. Click Next

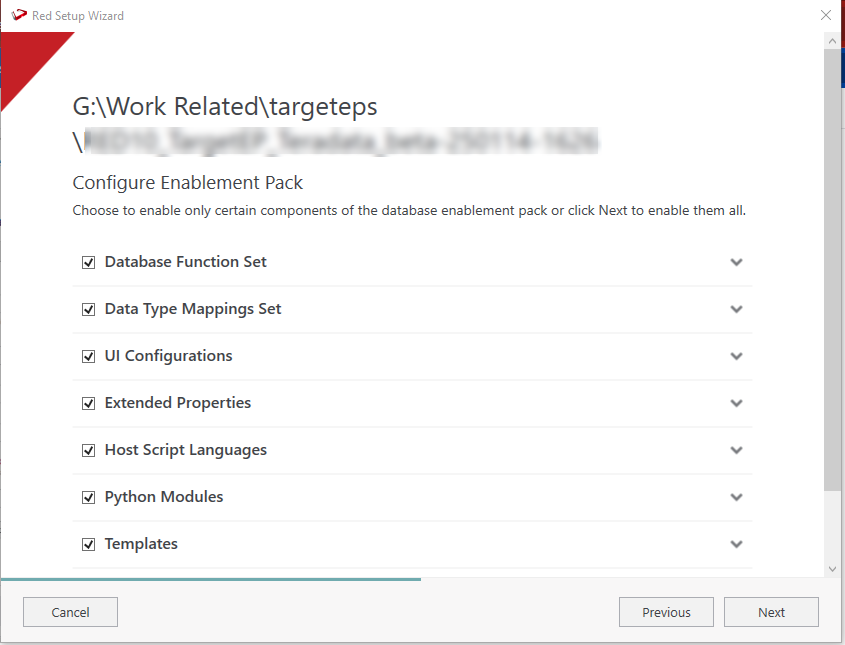

Using the check boxed list, include or exclude the components that are to be installed. Click Next

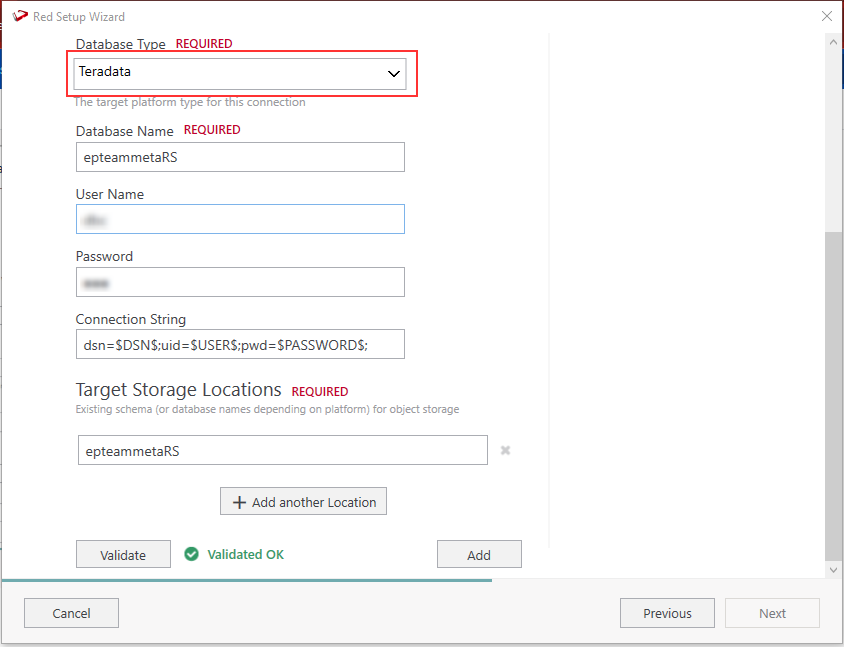

Configure a target connection (for example, Data Warehouse) and its target locations. Validate and click Add.

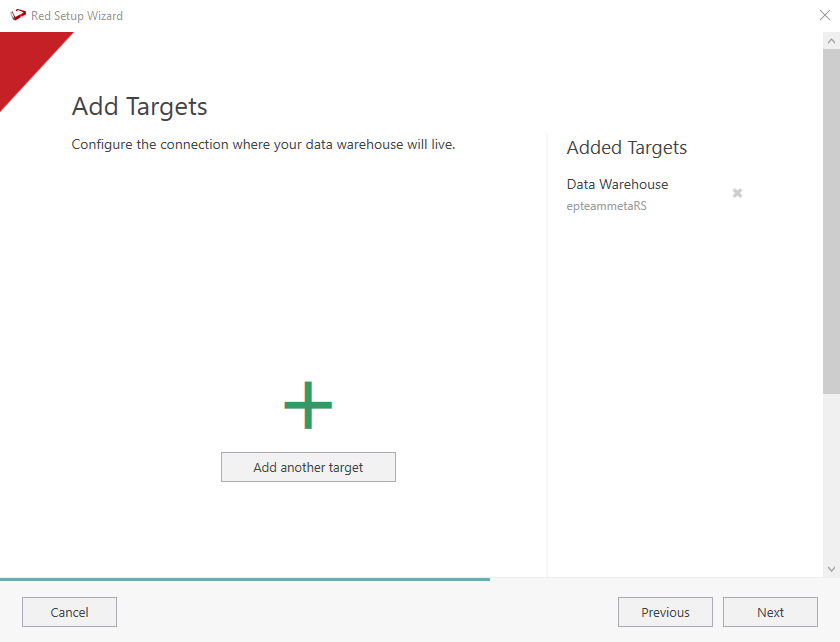

When done, click Add and then Next to continue.



Configure a data source connection (optional) and its target locations. Validate and click Add. Click Next to advance.

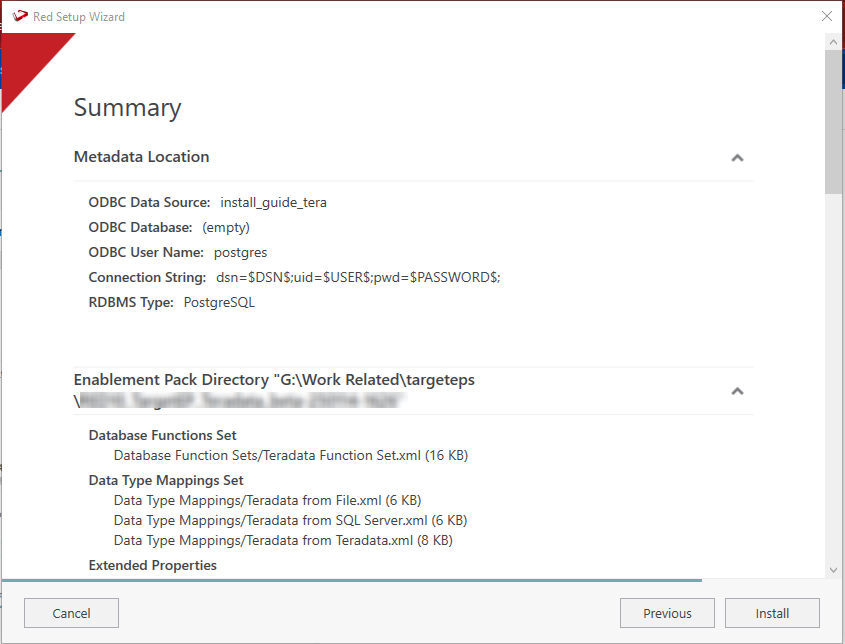

Review the installation summary and click Install.

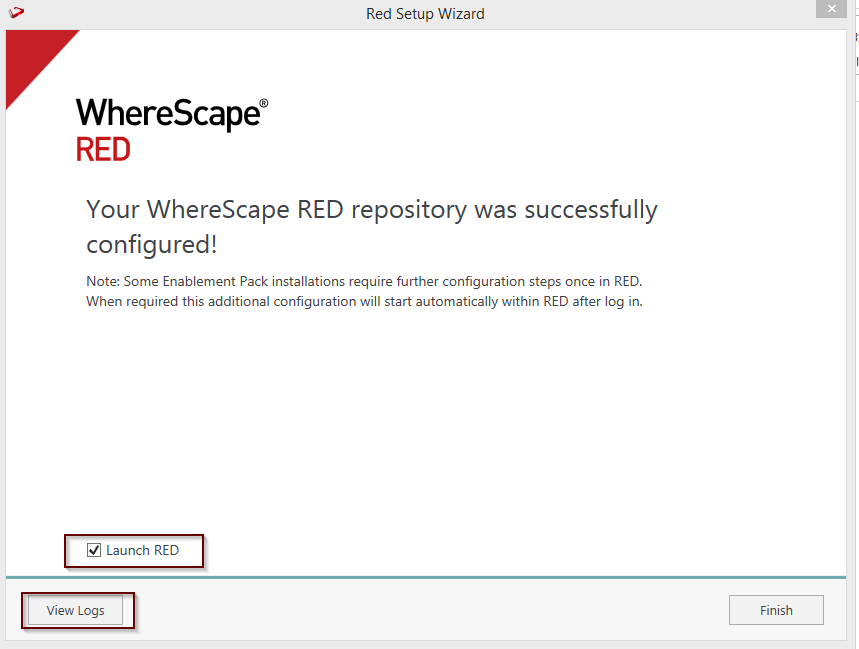

Click View Logs to open the installation log. Click Finish once the installation is completed successfully.

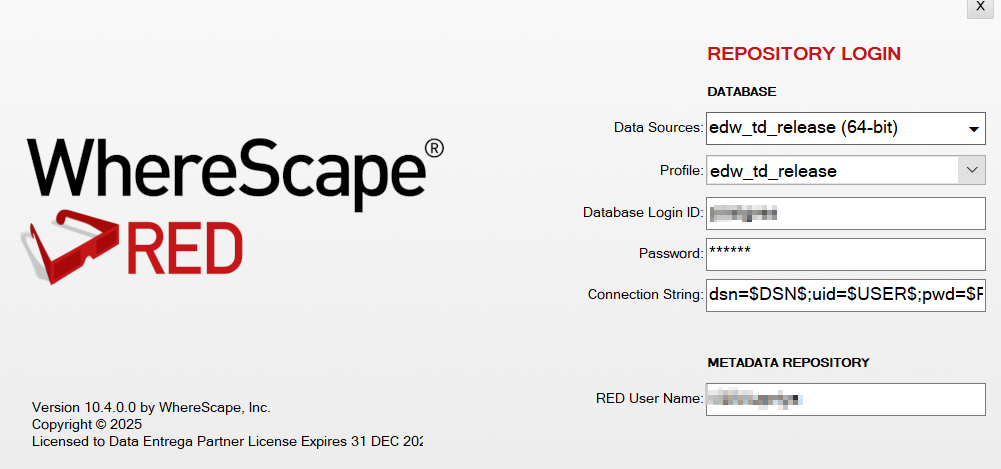

Login to WhereScape RED.

There is a post-install script that will run at the first login to RED10 to complete the post-setup wizard installation process.

You will be directed to the below PowerShell window which will give a brief explanation about the post-installation process.



Click OK to start the post-installation. If you click Cancel the installation stops and you are directed to RED.
You are directed to the window below, where you have to select the target connection to be configured. Additionally, by deselecting the
provided options, you can choose not to install a particular option. "Reset Extended Properties" is deselected by default.

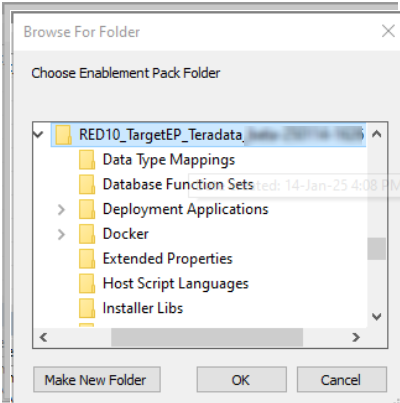

You will be directed to the PowerShell window below. Provide the directory that contains the unzipped Enablement Pack.


Click OK

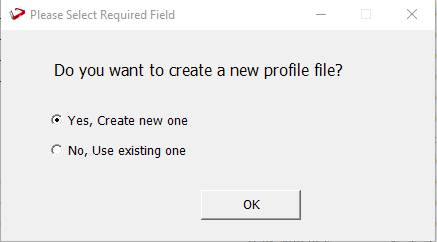

You will be directed to the window below, choose to create a new profile or use an existing one.

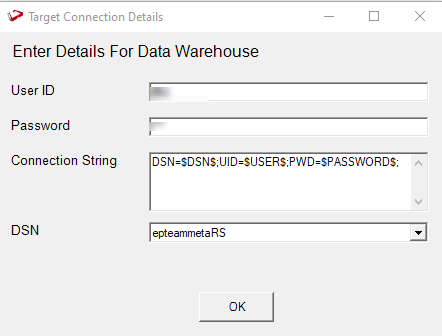

If you select 'Yes,' you must enter the data warehouse details. If you select 'No,' you must choose an existing profile file to use.

Enter a profile name.

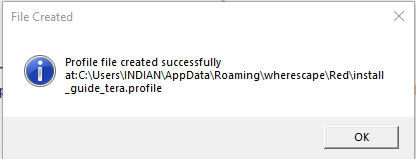

Profile gets created successfully.



The progress bar will show the post-installation progress.

You will have to choose the database for the target settings that were provided. One pop up will come for setting a default target for Date Dimension.

After selecting the target schema a progress bar will show the progress for the installation and once it's completed, you will get the below pop up.



After clicking OK RED10 opens automatically.

You need to restart RED once.


Upgrade Of Existing Repository

For upgrade of existing repository

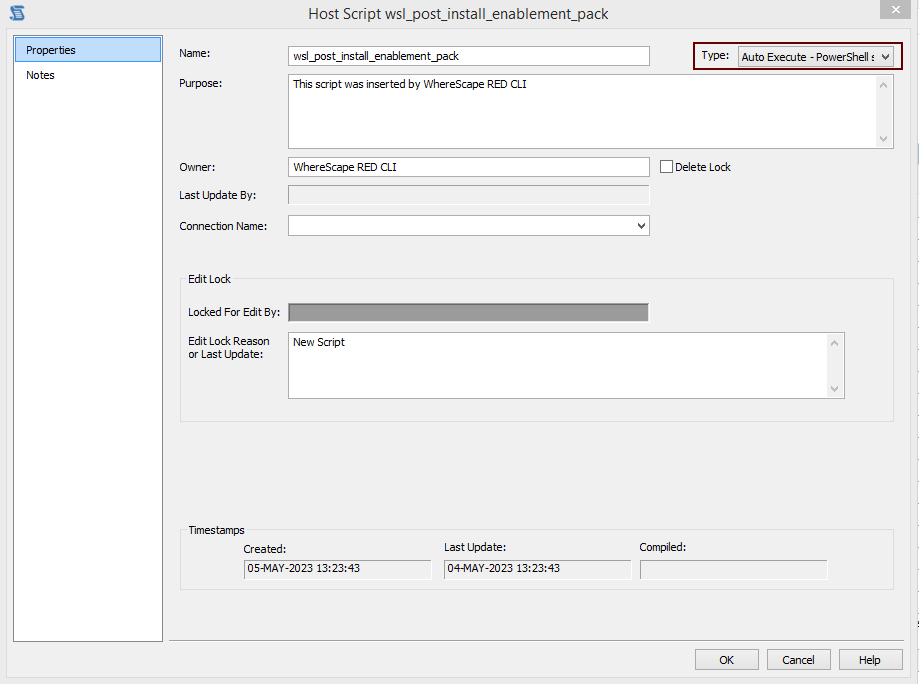

From the host script set a script type of wsl_post_install_enablement_pack as Auto Execute - PowerShell Script


Important Upgrade Notes

If RED upgrade the repository option is chosen.

This enablement pack will overwrite any existing Source Enablement Pack UI Configs:

Connection UI Config

Load UI Config

Amazon S3

Load From Amazon S3

Azure Data Lake Storage Gen2

Load From Azure Data Lake Storage Gen2

Google Cloud

Load From Google Cloud

To ensure existing Source Enablement Pack connections and associated Load Tables continue to browse and load:

Go into UI Configuration Maintenance in RED before installing this Enablement Pack and rename the affected UI Configurations. While the updated Load Template will work with the previous Source Enablement Pack, we recommend moving these earlier versions of Load Tables to newly created Parser-based connections following this install. The earlier versions of the Source Enablement Pack will be deprecated following this release.

Post Install Steps – Optional

If you used the script Setup Wizard for installation, then the following optional post-install steps are available.

Configure Connections

There were two connections added that will optionally require your attention:

  1. Connection: 'Database Source System' - this connection was setup as an example source connection,
    • open it's properties and set it up for a source DB in your environment
    • or you can remove it if not required

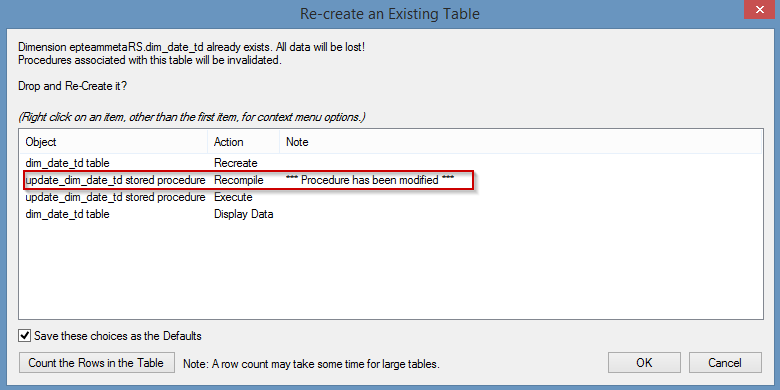

  2. Execute Update Procedure for dim_date_td to Initialize Date Dimension for Target

Please avoid regenerating the procedure update_dim_date_td as it is a custom procedure.

Source Enablement Pack Support


Source Pack Name

Supported By Teradata

Supported Features

Prerequisites

Amazon S3

 Yes

Load Template, Source
Properties will have following file
load routine options:

  • MultiLoad
  • FastLoad
  • Load TPT
  • UpdateTPT
  • StreamTPT

Teradata Access Module for S3 (CSV) - Create a credential file by following the documentation linked below, and paste the directory location of the credential file into the 'Amazon S3 Config Directory' Extended Property:

https://docs.teradata.com/r/Enterprise_IntelliFlex_Lake_VMware/Teradata-Tools-and-Utilities-Access-Module-Reference-20.00/Teradata-Access-Module-for-S3/The-config-and-credentials-Files

Azure Data Lake Storage Gen2

Yes

Teradata Access Module for Azure Blob (CSV) - Create a credential file by following the documentation linked below, and paste the directory location of the credential file into the 'Azure Config Directory' Extended Property:

https://docs.teradata.com/r/Enterprise_IntelliFlex_Lake_VMware/Teradata-Tools-and-Utilities-Access-Module-Reference-20.00/Teradata-Access-Module-for-Azure-Blob/The-Credentials-File

Google Cloud Storage

 Yes

 None

Windows Parser

Yes

Refer to Windows Parser Guide

Database

Yes

Load Template, using TPT Load
Type, Source Properties will have
following types:

  • Load TPT
  • UpdateTPT
  • StreamTPT

Load Template with Script based
load type.

None


Troubleshooting and Tips

Run As Administrator

Press the Windows Key on your keyboard and start typing cmd.exe, when the cmd.exe icon shows up in the search list right click it to bring up the context menu, select Run As Administrator
Now you have an admin prompt navigate to to the folder where you have unpacked your WhereScape Red Enablement Pack to using the 'cd' command:

C:\Windows\system32> cd <full path to the unpacked folder>

Run Powershell (.ps1) scripts from the administrator prompt by typing the Powershell run script command, for example:

C:\temp\EnablementPack>Powershell -ExecutionPolicy Bypass -File .\Setup_Enablement_Pack.ps1

In the event you can not bypass the Powershell execution policy due to group policies you can instead try -ExecutionPolicy RemoteSigned which should allow unsigned local scripts.

Windows Powershell Script Execution

On some systems, Windows Powershell script execution is disabled by default. There are several workarounds for this which can be found by searching the term "Powershell Execution Policy".
Here is the most common workaround that WhereScape suggests, which does not permanently change the execution rights:
Start a Windows CMD prompt as Administrator, change the directory to your script directory, and run the WhereScape Powershell scripts with this command:

  • cmd:>Powershell -ExecutionPolicy Bypass -File .\<script_file_name.ps1>

Restarting failed scripts

Some of the setup scripts will track each step and output the step number when there is a failure. To restart from the failed step (or to skip the step) provide the parameter -startAtStep <step number> to the script.

Example:

Powershell -ExecutionPolicy Bypass -File .\<script_file_name.ps1> -startAtStep 123

To avoid having to provide all the parameters again you can copy the full command line with parameters from the first "INFO" message from the beginning of the console output.

Python requirements for offline install

Additionally to the base Python installation being required, the WhereScape Python Template set also requires certain additional Python libraries. The install scripts use the PIP (package manager) to download these libraries, however, for offline installs, you will need to install the required libraries yourself.
Required Python libraries/add-ons:

  • pywin32-ctypes
  • python-tds
  • pywin32
  • glob2
  • gzip-reader
  • regex
  • pyodbc

To create view with cross database reference

For cross database reference view creation user needs to run this command "GRANT ALL ON DATABASE1 TO DATABASE2 WITH GRANT OPTION"

If a valid RED installation can not be found

If you have RED 10.x or higher installed but the script (Setup_Enablement_Pack.ps1) fails to find it on your system then you are most likely running the PowerShell (x86) version which does not show installed 64-bit apps by default. Please open a 64-bit version of Powershell instead and re-run the script.
