In this step you will set up a font style for all your screens.

You use styles in your application (as opposed to formatting individual screens or elements manually) because styles produce a common look and feel and prevent unconstrained style evolution. They also provide a single point of change so you can, for example, change the font of all screens by changing the style.

Even though you can freely customize screens using aXes, you should bear in mind that the look and feel of your application should be primarily controlled by the standard Framework themes, and that any customization needs to fit in with them.

For example, you should not use aXes styles to set up screen background colors, because the Framework automatically sets the background color of all RAMP screens.

1.   Click Edit Screen, then select Application in the list of eXtendable objects to display the properties of the application:

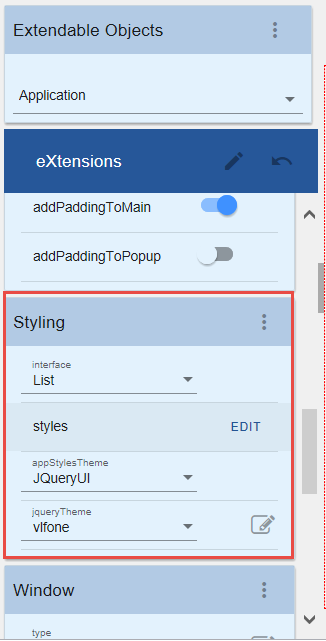

2.   Scroll down until you see the Styling section:



3.   Click EDIT next to styles.

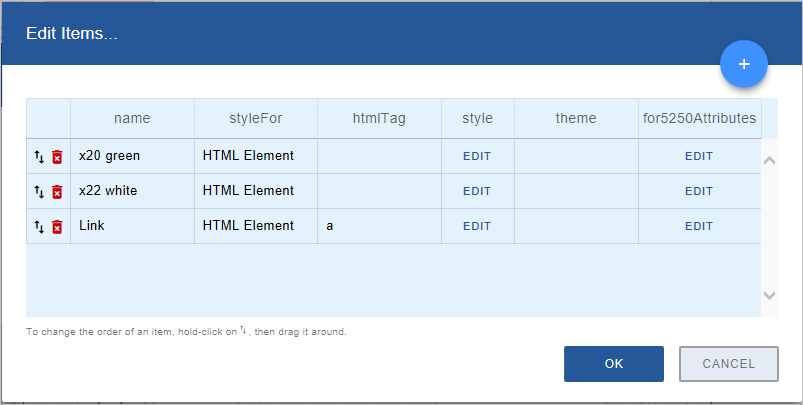

The Styles editor is displayed:

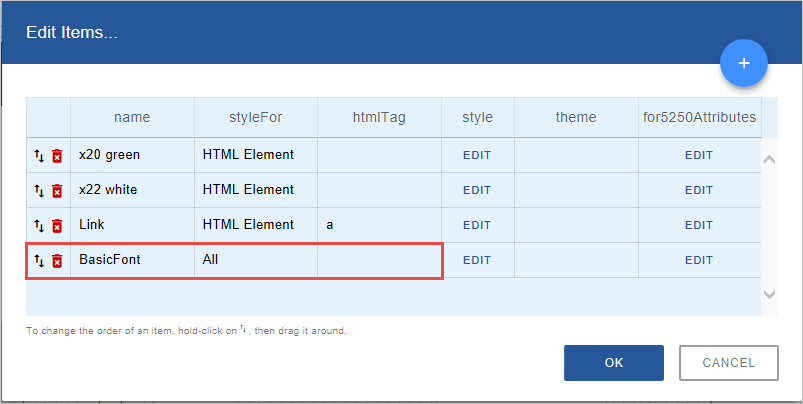

4.   Click on the Add button (plus) to add a style:

  • Specify BasicFont as the name of the style
  • Select All as the value for StyleFor property
  • Leave the htmlTag property blank

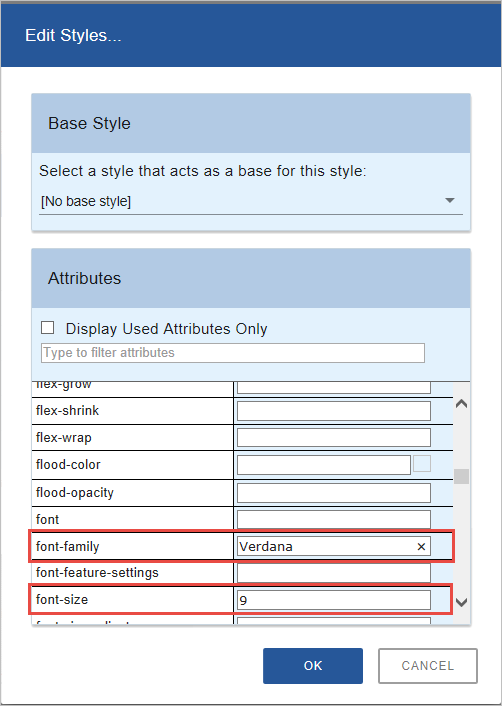

5.   Click on EDIT in the style property. A window showing all style properties is displayed.

6.   Locate the font-family attribute and specify Verdana.

7.   Locate the font-size property and specify 9:



8.   Click OK.

When setting font sizes, please note that the screens shown in a RAMP application are automatically sized to fit the available space. This may mean that the font size displayed may be smaller than what you have specified.

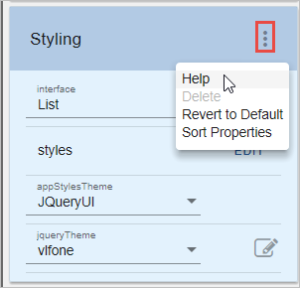

9.   To understand what the Style properties are, click on the menu icon in front of the Styling heading in the aXes Designer window and choose Help:

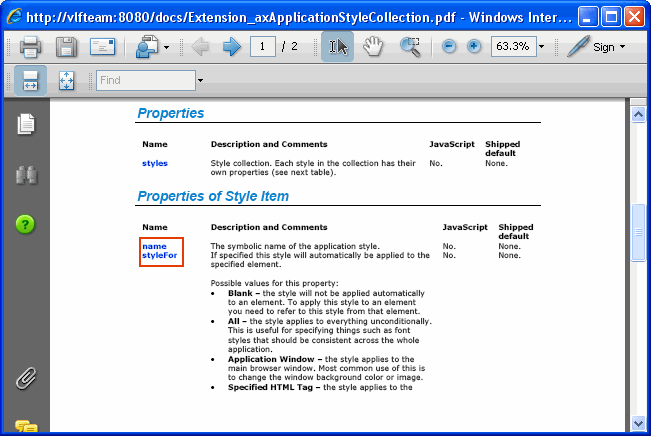

10.   Read the description for the StyleFor property:

The value All for the StyleFor property of the BasicFont style means it applies to all text in all screens which have been defined in aXes (when you edit a screen and save it in aXes Designer, a screen_xxxxx.js file is created for it in the aXes screens folder).


11.   Click Save on top of the aXes Designer window to save the style you have created:

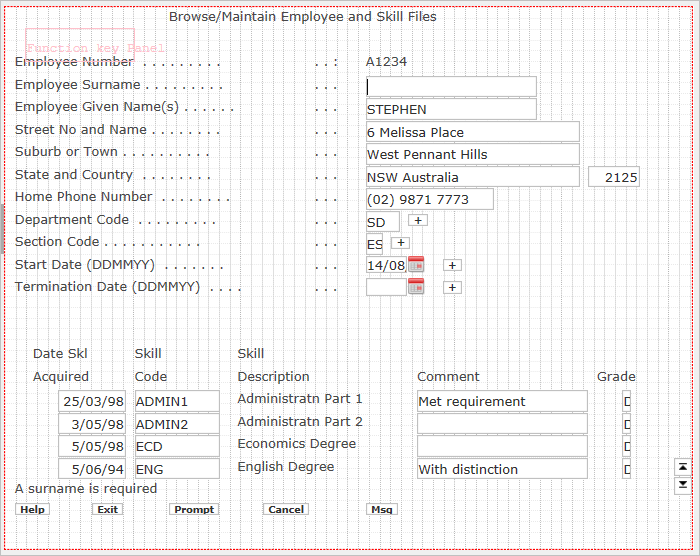

Note that the font of the screen is now Verdana 9pt:
