Snowflake Key Pair Authentication provides an enhanced security alternative to traditional username and password authentication.

This method relies on a public-private key pair, typically generated using OpenSSL, to establish secure connections.

Please go through snowflake documentation for more details  https://docs.snowflake.com/en/user-guide/key-pair-auth

Follow the steps below to complete the Open SSL Setup

Option 1: Use an Installer Such as Shinning Light Installer for a Straightforward Setup

  1. Go to https://slproweb.com/products/Win32OpenSSL.html
  2. Download the latest version (choose depending on your system) and install the application
    • Win64 OpenSSL v3.x.x for 64-bit systems
    • Win32 OpenSSL v3.x.x for 32-bit (less common)

Option 2: Using PowerShell Command Prompt

  1. Open PowerShell as Administrator
  2. Download the OpenSSL Installer by running the following command
    Invoke-WebRequest -Uri "https://slproweb.com/download/Win64OpenSSL-3_5_2.exe" -OutFile "$env:USERPROFILE\Downloads\Win64OpenSSL-3_5_1.exe"
  3. Open the Downloads Folder in File Explorer using below command
    explorer "$env:USERPROFILE\Downloads"

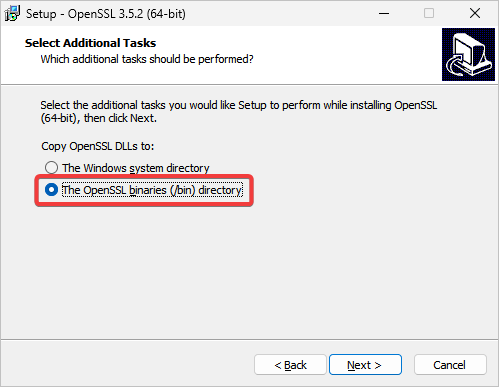

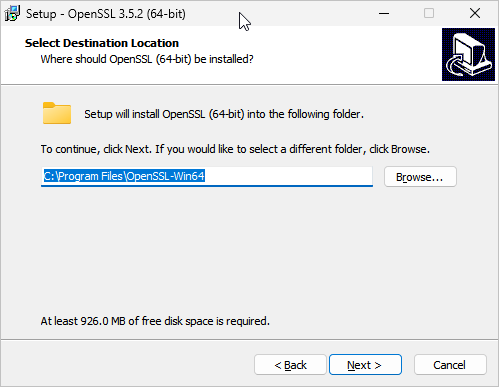

  4. Install the OpenSSL Application


After a successful installation, add C:\Program Files\OpenSSL-Win64\bin to the Path variable in the system
environment variables.

Then check the installed Open SSL version by running the command below in the command prompt:

Private Key Generation

  • Without Encryption:
    Run the command in cmd
    openssl genrsa 2048 | openssl pkcs8 -topk8 -inform PEM -out <private_key_filename.p8> -nocrypt
  • With Encryption:
    Run the command in cmd
    openssl genrsa 2048 | openssl pkcs8 -topk8 -v2 des3 -inform PEM -out <private_key_filename.p8>

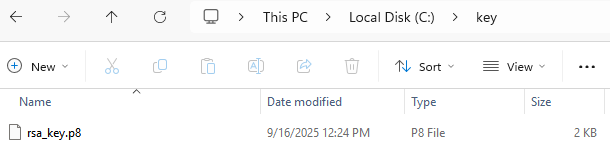

You can find the file at the same location where the command was executed. Use File Explorer to verify that the file has been created.

→ Private key is generated

Public Key Generation

Run the below command in cmd

openssl rsa -in rsa_key.p8 -pubout -out <public_key_filename.pub>

You can find the file at the same location where the command was executed. Use File Explorer to verify that the file has been created.

→ Public key is generated

Open the public key file in the text editor. Copy only the key without line break

Login to Snowflake Console and choose appropriate Data Warehouse and Database

  1. Assign the public key to a Snowflake user
    ALTER USER MY_SERVICE_USER SET RSA_PUBLIC_KEY='MIIBIjANBgk................';
  2. Verify the user’s public key fingerprint
    Execute the following command to retrieve the user’s public key fingerprint:
    DESC USER USERNAME
     ->> SELECT SUBSTR(
     (SELECT "value" FROM $1
     WHERE "property" = 'RSA_PUBLIC_KEY_FP'),
     LEN('SHA256:') + 1) AS key;
  3. The above output should match the fingerprint of the local public key. To obtain it, use the following
    command:
    openssl rsa -pubin -in rsa_key.pub -outform DER | openssl dgst -sha256 -binary | openssl enc -base64

    If the keys generated in both the command prompt and Snowflake console matches, Keys are successfully
    generated and assigned to the account!!

ODBC Configuration

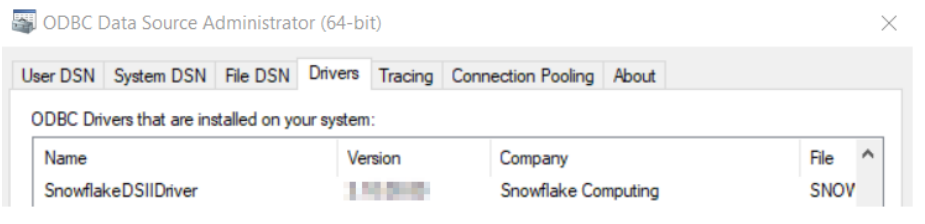

Install the latest version of the Snowflake ODBC Driver

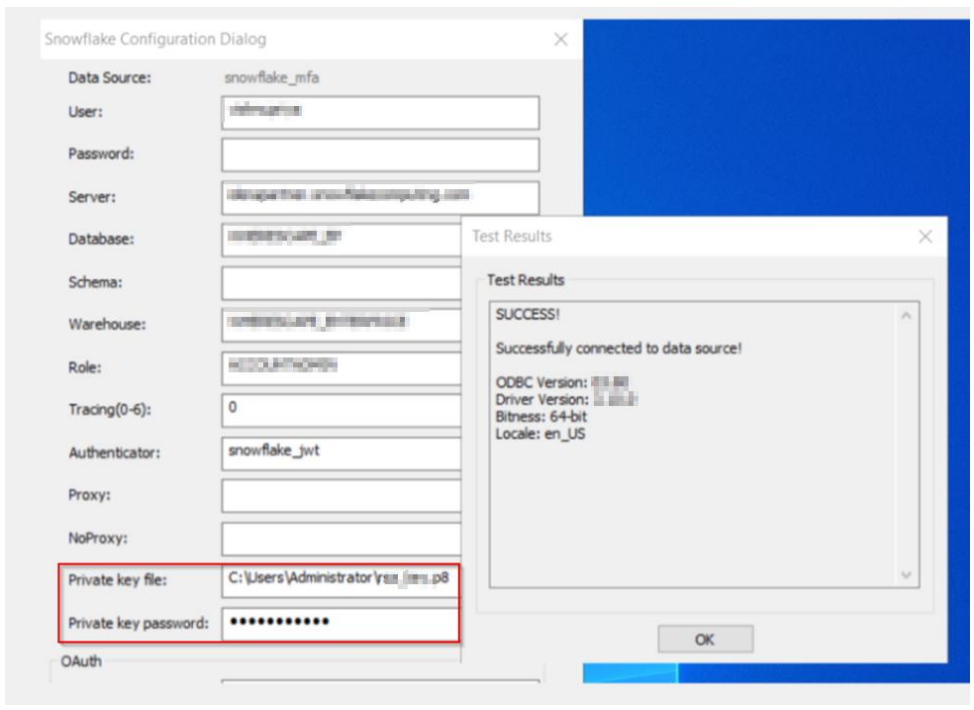

Create a DSN by adding the required details and test it.

Alternatively, if you plan to continue using the existing driver, you can manually add additional fields via the Registry Editor by following these steps:

  1. Press Win + R, type regedit, and press Enter.
  2. Navigate to:
    Computer\HKEY_LOCAL_MACHINE\SOFTWARE\ODBC\ODBC.INI\
  3. Locate and select your DSN (Data Source Name).
  4. Right-click in the right pane and select New > String Value.
  5. Enter the appropriate field name and value, ensuring they match the required configuration.

Troubleshooting Tips:

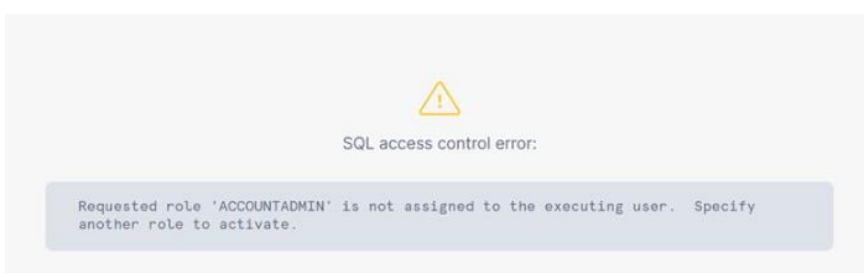

You might come across Role access in Snowflake error as below when the DSN is tested for RSA Key pair:

As a fix execute the below command to switch to required <MY_ROLE> .MY_ROLE is the Role assigned to the user in the Snowflake account

GRANT ROLE <MY_ROLE> TO USER <MY_SERVICE_USER>;
